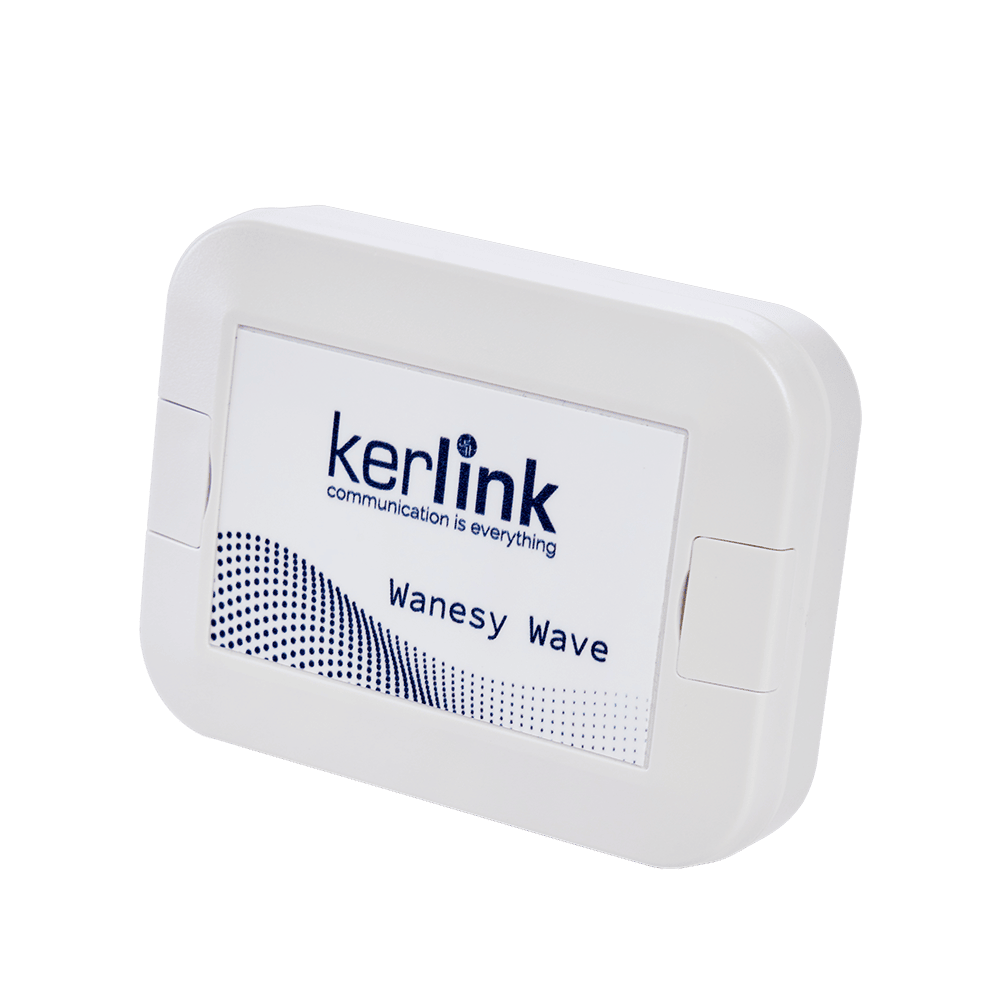

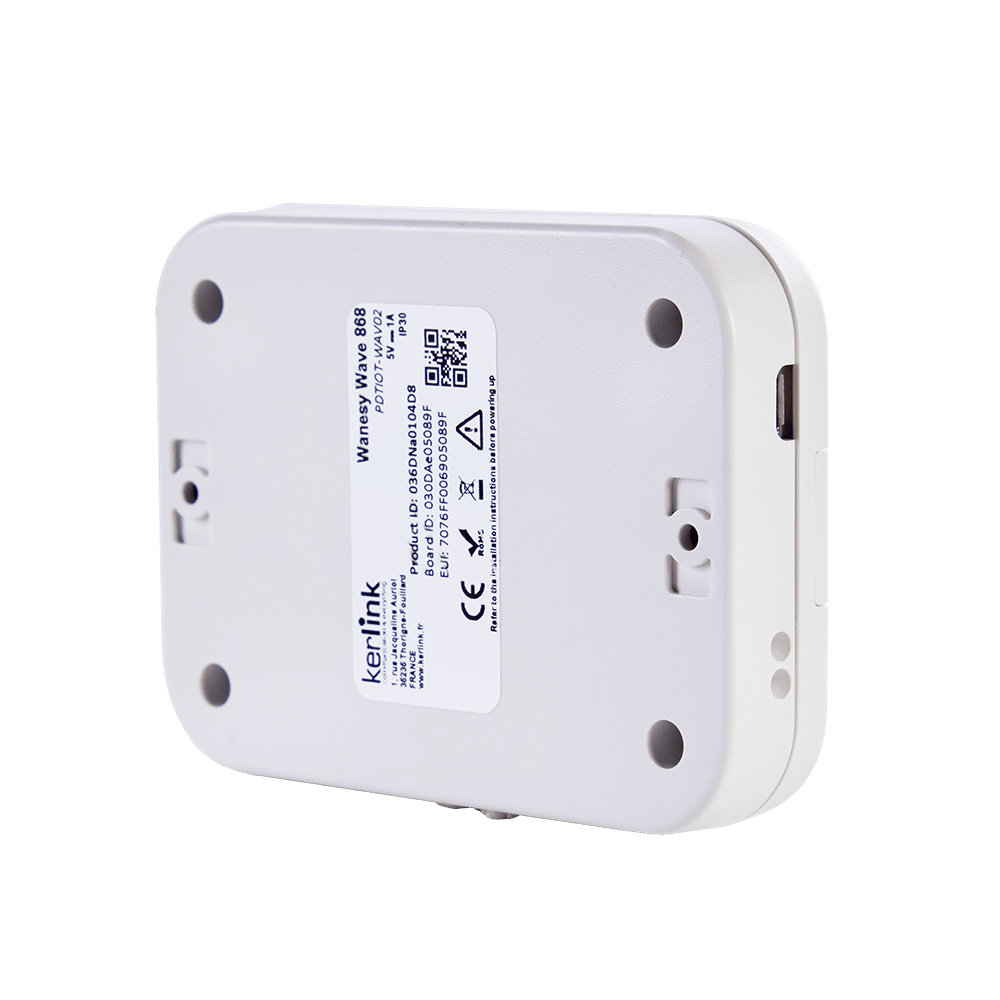

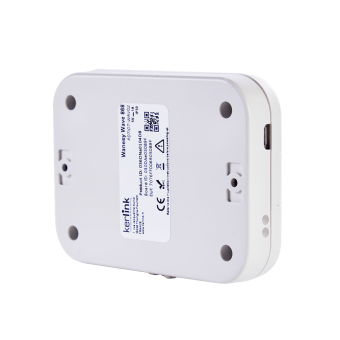

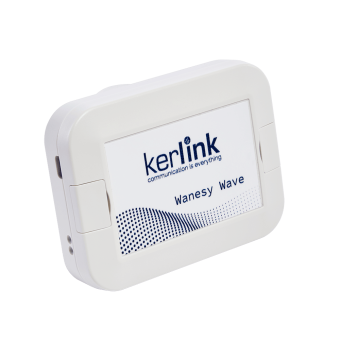

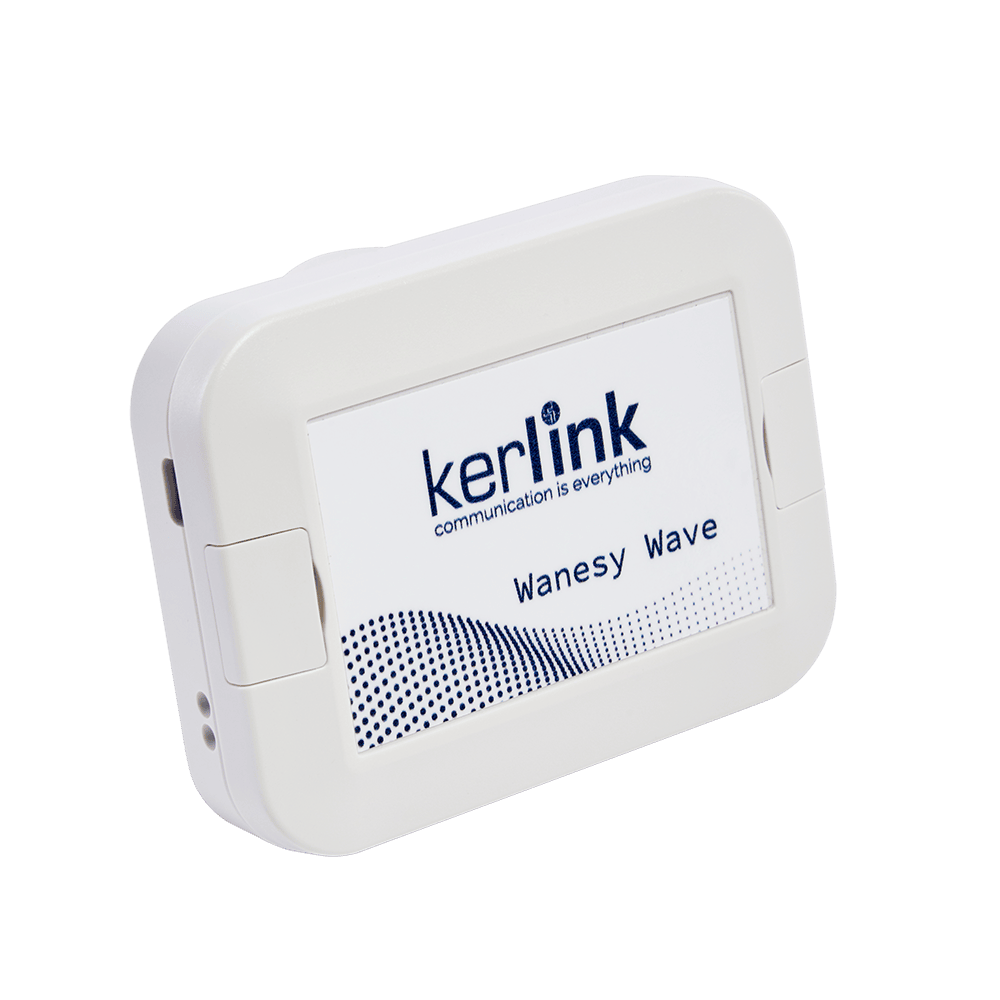

Wanesy Wave

Wanesy Wave is a Wi-Fi/BLE anchor dedicated to asset tracking.

It integrates both Wi-Fi and BLE (for Bluetooth Low Energy) tracking technologies and LoRaWAN backhauling to create highly reliable and secured smart indoor tracking, smart retail and smart asset management solutions.

Wanesy Wave is in the core of asset tracking solutions

Wanesy Wave is the key to deploy solutions that meet the needs of hospitals, buildings, industrial site managers or mall operators. This solutions enables real-time information on assets positioning or people counting information.

Thanks to its embedded scanning, counting and zoning software, Wanesy Wave can bring the solution to building operators that need to know their assets status in their perimeter.

Wanesy Wave allows indoor geolocation for an improved asset management

Thanks to its embedded tracking technologies, Wanesy Wave based solution can answers questions such as:

  • “How many people and/or assets are in that specific area?”
  • “How many people and/or assets have been in that place for more than 10 minutes or 1 hour?”
  • “Which are the new assets within the last 10 minutes?”
  • “What is the list of assets (inventory) in that area?”
  • “Where is this specific asset?”
  • “How many people visited my shop or attended my art gallery?
  • “What is the flow of visitors / customers / citizens in my buildings?
  • “Where are my assets in my buildings?
  • “How can I prevent people to move my assets outside a given area?

End-to-end business applications such as In-Stores Analytics for Smart-Retail market or Smart Asset Monitoring can be deployed very quickly.

Wanesy Wave is in the core of a Covid-19-fighting solution deployed around the world. Kerlink and its partner Microshare have teamed up to provide an easy and quick to deploy solution for any type of industry.

Download documentation
Ask for quote

Download documentation

Ask for quote

Easy & Complete architecture with Wanesy Wave

  • Smartphone or BLE tag
  • Bluetooth or Wi-Fi
  • Wanesy Wave

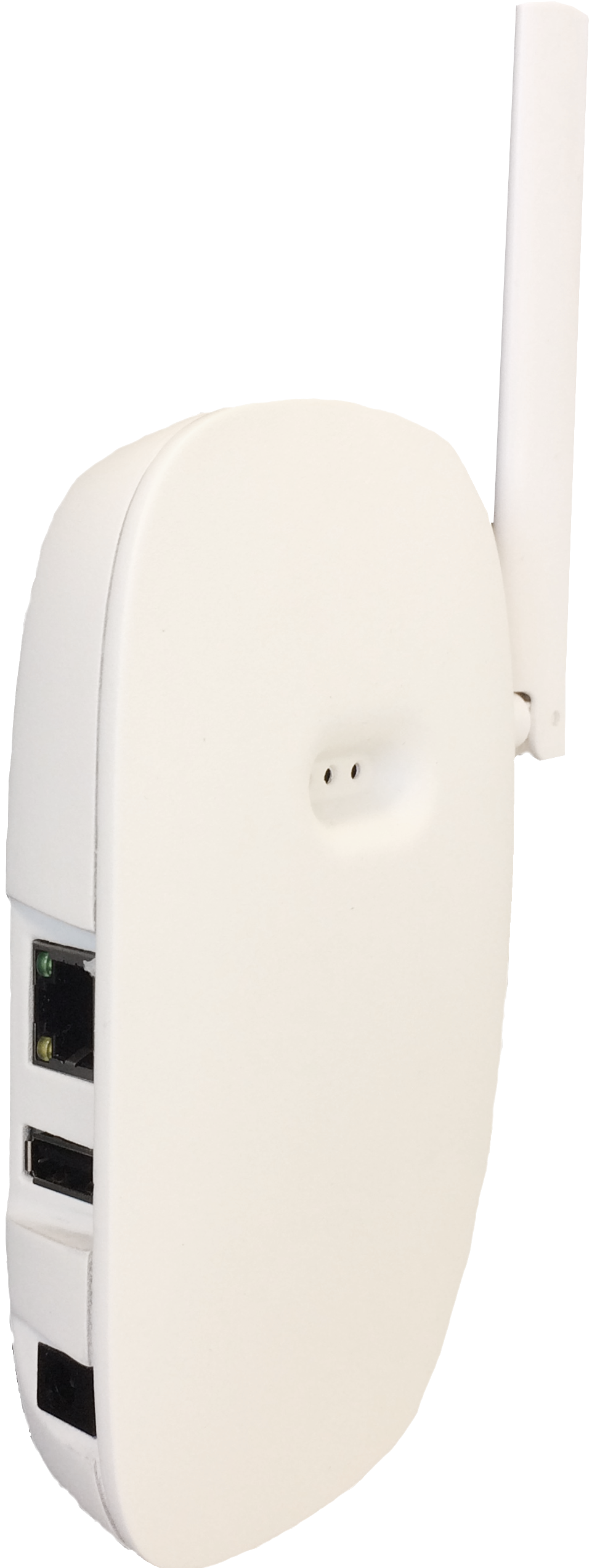

  • Wirnet iFemtoCell
  • Wanesy Management Centre
  • Business Application Server

Strengths

LoRaWAN :

  • Indoor deep penetration
  • Secured and encrypted data

Bluetooh Low Energy

  • Up to 50m indoor range
  • Low energy consumption

Mechanical

  • Easily instable
  • Discreet
  • All antennas integrated

Technical features

Characteristics:

  • Operating Temperature: -20°C to +55°C
  • Size: 100 x 75 x 22 mm
  • Ingress Protection: IP30
  • Weight: < 200g
  • Two status LED (1 green/1 red)

Power supply:

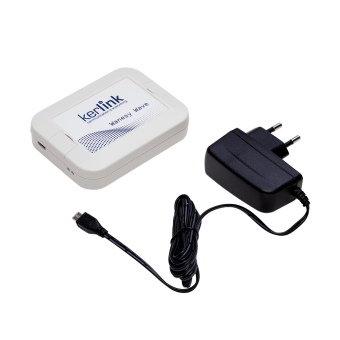

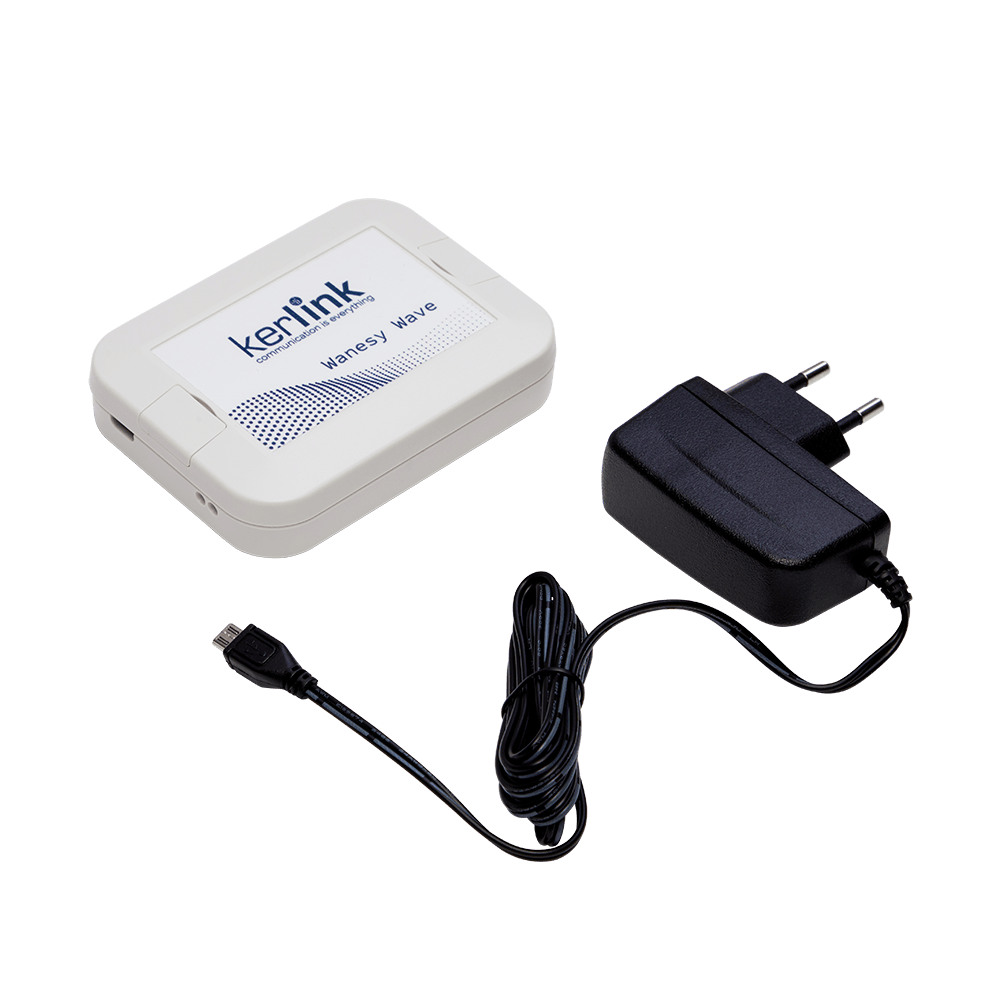

  • USB Micro-B connector (5VDC)
  • Internal backup battery (1mAh)

Wi-Fi:

  • 802.11 b/g/n/e/l
  • Probe Requests collecting

Bluetooth:

  • V4.0 BR/ Bluetooth Low Energy
  • BLE scan / iBeacon

LoRaWAN:

  • EU868 (SX1261) with TX up to 15 dBm
  • US915 (SX1262) with TX up to 22 dBm

Use cases

  • Smart Cities
  • Smart Industries
  • Smart Building & Facilities
  • Smart Health
