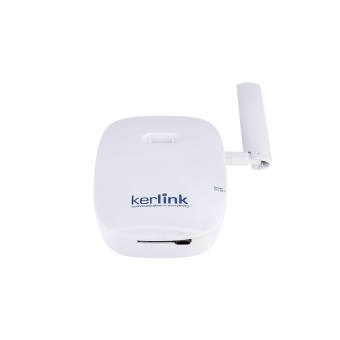

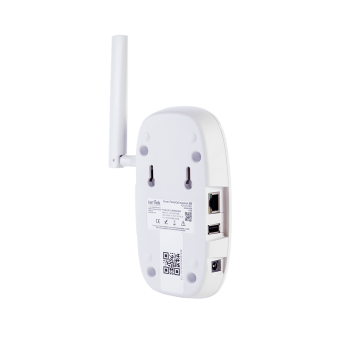

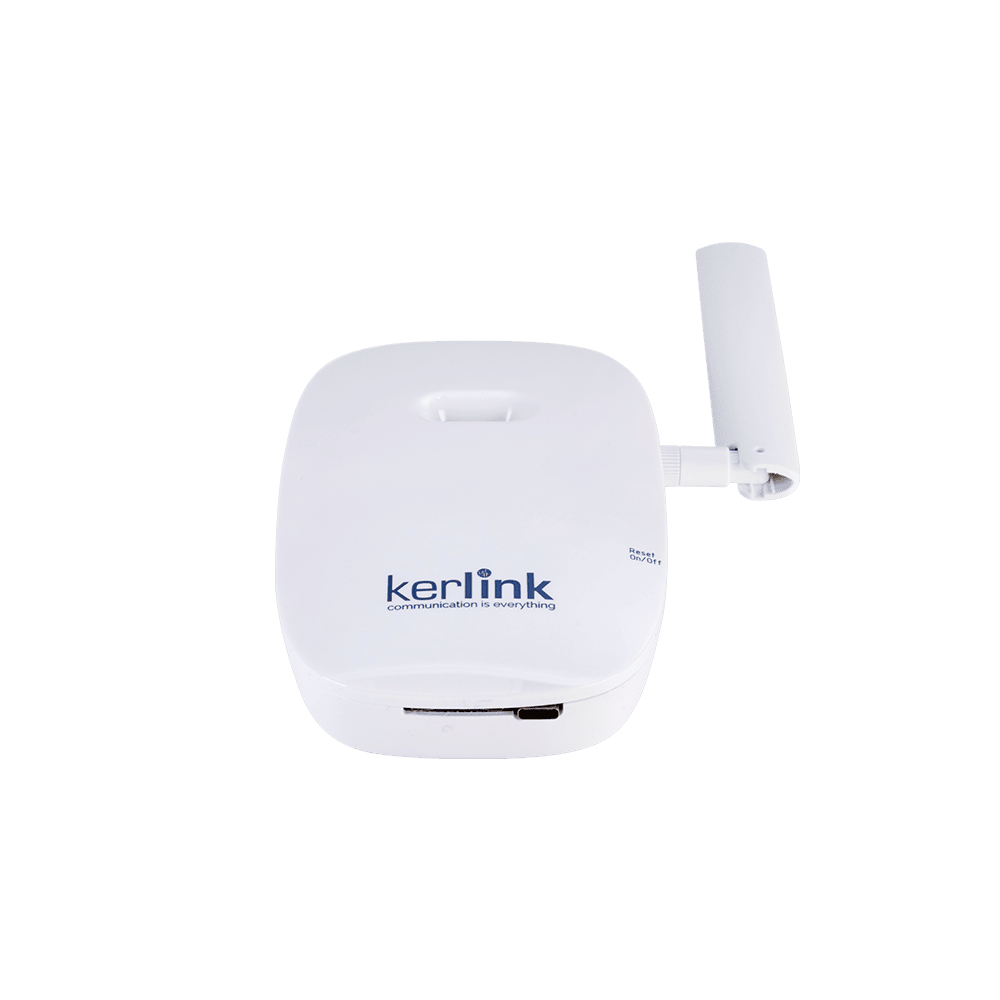

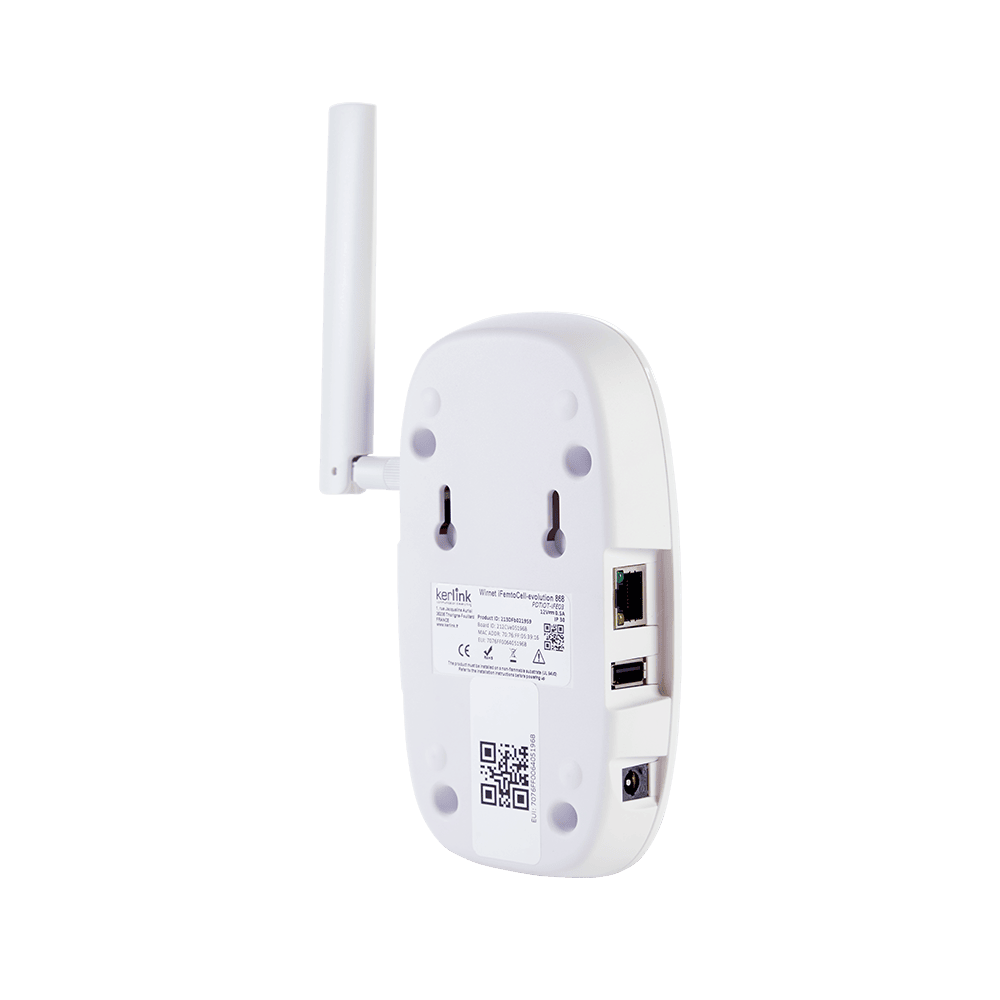

Wirnet iFemtoCell-evolution

The Wirnet iFemtoCell-evolution is the ideal gateway to support you in your smart city, smart building or every smart project that requests dedicated indoor coverage and/or network densification, providing both a unique superior coverage and operational excellence with an internal 3G/4G backhaul.

Documentation
Ask for quote

Ask for quote

Documentation

Strengths

High performance, reliability & robustness

  • SemtechReference Design v1.5 components,
  • Integrated LTE antenna,
  • Built-in high rejection filters,
  • Quality management system certified ISO9001: 2015 by AFNOR certification, with permanent implementation of progress.



Secure hardware and software architectures

  • SecureBoot (Signed firmware),
  • SecureStorage (keys and certificates in secured area) using ProvenCore™ solution,
  • Secured links and backhaul protection (OpenVPN/IPsec),
  • Reboot (watchdog) and recovery on previous Management config (or factory config if the boot issue is not fixed).



Technical features

  • Indoor LoRa® Gateway
  • Ingress protection (IP30)
  • Supported unlicensed bands: 863-874.4MHz (EMEA, India), 902-928MHz (North America), 915-928MHz (APAC, Latin America)
  • Supported LoRaWAN® regional parameters: EU863-870, IN865-867, RU864-870, US902-928, AU915-928, AS923, KR920-923
  • 8ch RX (125 kHz, multi Spreading Factor) + 1ch RX (250KHz or 500kHz, mono Spreading Factor) + 1ch RX (FSK) to get 10ch RX + 1ch TX
  • Backhaul connectivity: 4G Worldwide module with3G/2G fall-back and Ethernet (RJ45)
  • Powered by:
    • AC/DC power supply (90-264VAC/12VDC) with 5.5 x 2.5mm plug
    • 5V DC supply via USB-C
    • Uninterrupted power supply with 5h or 24h autonomy (accessories)
  • Highly secured device relying on a hardware secure core

Use cases

  • Smart Energy
  • Smart Cities
  • Smart Industries
  • Smart Building & Facilities
