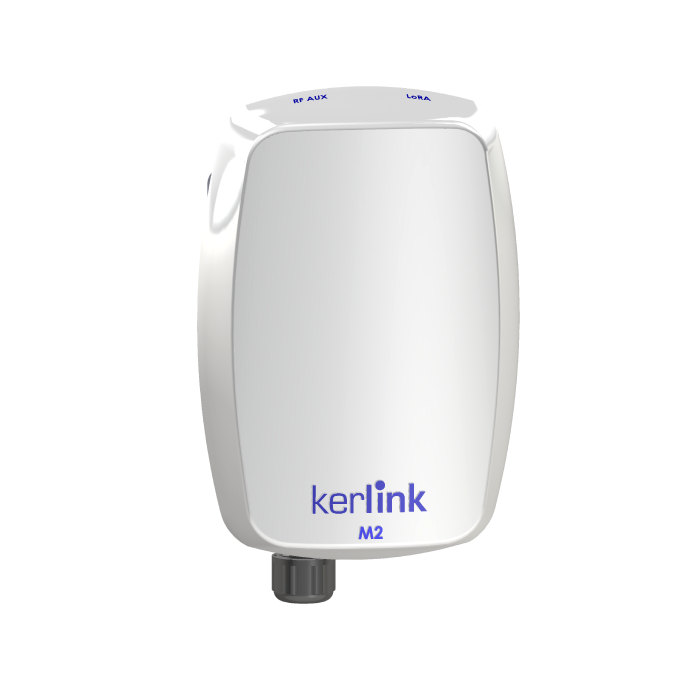

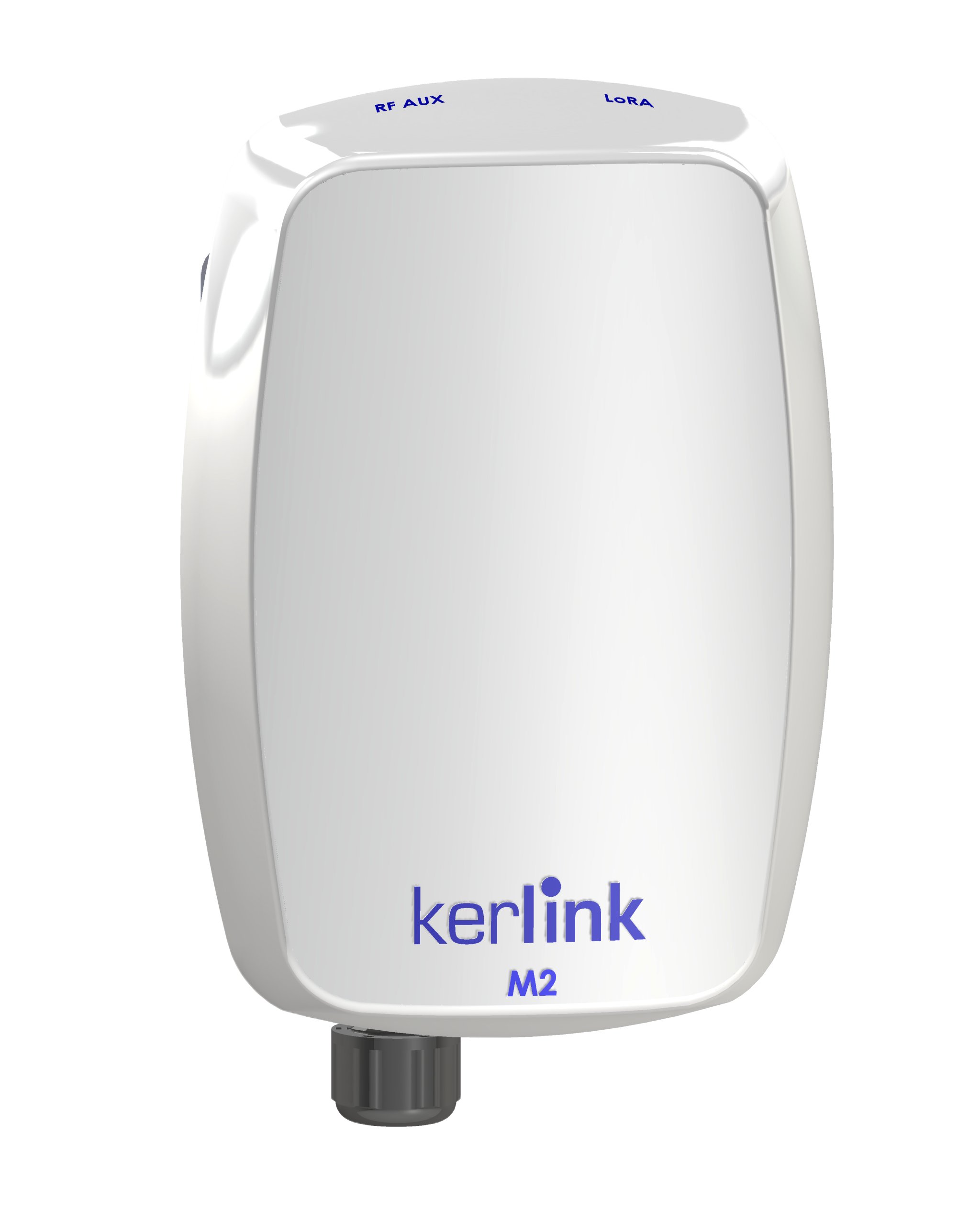

Wirnet iStation M2 LoRaWAN Gateway

The ultra-low-power outdoor 8 channels LoRaWAN gateway

The Wirnet iStation M2 is Kerlink’s next-generation outdoor LoRaWAN gateway, built to deliver reliable, long-range IoT connectivity in demanding environments.

Taking the proven strengths of the Wirnet™ iStation a step further, the M2 introduces new capabilities that make it an even more robust and scalable gateway for any outdoor IoT project:

  • Ultra-low energy consumption and native solar compatibility, enabling autonomous deployments in locations where power is limited or unavailable: water metering sites, mining areas, island regions…
  • Edge computing capabilities powered by an upgraded 64-bit i.MX8 CPU and 1GB RAM, for local data processing and reduced latency,
  • Enhanced radio performance with the Semtech SX1302 LoRa core, offering faster modulation and higher network capacity so the gateway can handle more messages and more connected devices,
  • Flexible backhaul options to match different infrastructures and budgets: 4G/5G, Ethernet (PoE) and WiFi,
  • Plug-and-play activation enabled by zero-touch provisioning, keeping installation simple and fast.



Designed and manufactured in France, the Wirnet iStation M2 reflects Kerlink’s focus on quality, durability and operational excellence, making it a trusted choice for operators, utilities and integrators looking to expand their IoT networks with confidence.

Documentation
Ask for quote

Documentation

Ask for quote

Wirnet iStation M2 in your smart IoT application

  • IoT LoRaWAN Sensor
  • LoRaWAN communication
  • Wirnet iStation M2
  • 4G/5G, Ethernet, Wi-Fi backhaul
  • LoRa Network Server
  • Business Application

Strengths

High performance, reliability & robustness

  • Developed and manufactured in France
  • Lifetime guarantee
  • Low power consumption record: less than 1.8 W under typical operating conditions
  • Carrier grade and robust design with excellent heat dissipation
  • Semtech LoRa Corecell Gateway Reference Design
  • Built-in radio diagnostics tools: VSWR measurement, TX power verification and RX chain gain check

Secure hardware and software architectures

  • SecureBoot (Signed firmware)
  • SecureStorage (keys and certificates in secured area) using Trusted Execution Environment solution
  • Secured links and backhaul protection (OpenVPN/IPsec/WireGuard)
  • Reboot (watchdog) and recovery to previous Management config (or factory config if the boot issue is not fixed)

Technical features

  • Sniffer for LBT (Listen Before Talk)
  • Built-in high rejection SAW filters
  • Rx Sensitivity: – 127dBm to – 140dBm
  • Conducted TX Power: configurable from 0dBm to 27dBm
  • Range -40°C +60°C
  • HumidityRange: 0-95%
  • Approx. weight: 1.3 kg (mounting kit included)
  • Approx. Size: 265 x 165 x 95 mm
  • Internal battery storage for clean shut down of applications in case of power failure
  • Casing: IP67 Alu (Back), Polycarbonate (Front), Inox(mounting kit)
  • Surge protection of the RF LoRa link (option)
  • Embedded surge protection on Ethernet and DC input (gas tube)
  • CPU & Memory: iMX8X Lite processor, 8GB eMMC,1GB LPDDR4 RAM
  • LoRacore: Semtech SX1302 + 2x SX1250, SX1303 ready

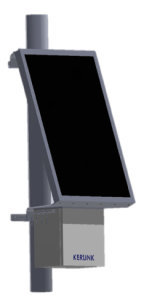

Solar panel kit for Wirnet iStation M2

Solar panel

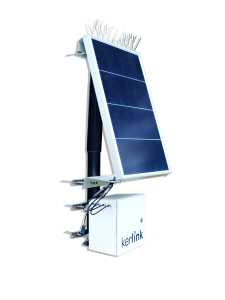

Pair the Kerlink Wirnet iStation M2 and our Solar Panel Kit to build fully autonomous deployments on remote or difficult‑to‑access sites: water metering sites, mining areas, islands, desert areas, remote facilities…

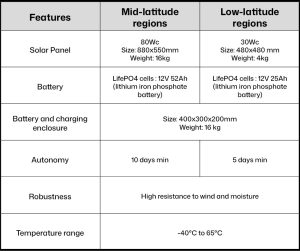

Kerlink’s Solar Panel Kit provides up to 10 days of autonomy for the Wirnet iStation M2, maintaining 100% service availability, 24 hours a day and 365 days a year. This ensures uninterrupted LoRaWAN connectivity on off-grid sites, regardless of weather conditions or power fluctuations.





Ask for quote

Use cases

  • smart-energy
  • smart-cities
  • smart-agricultures-environment
