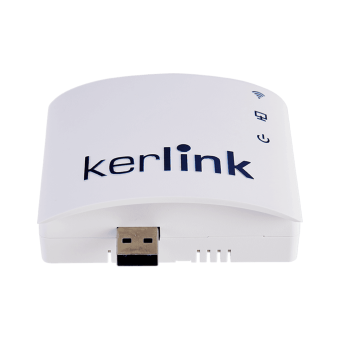

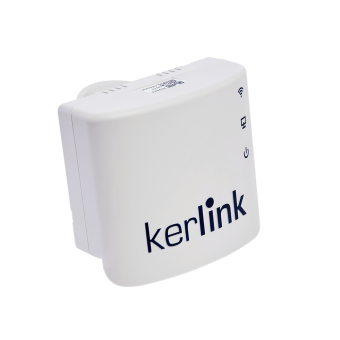

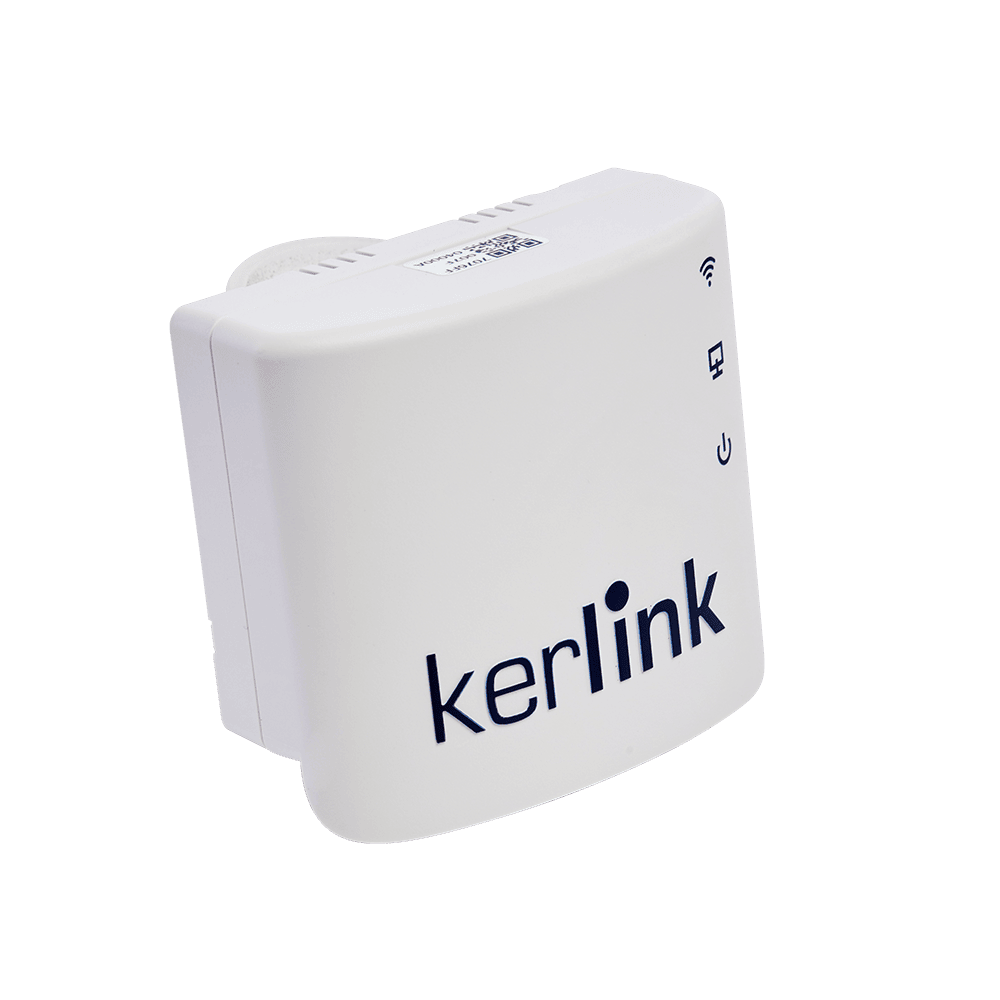

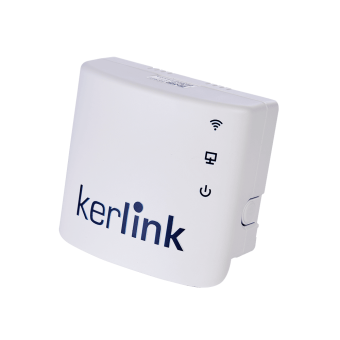

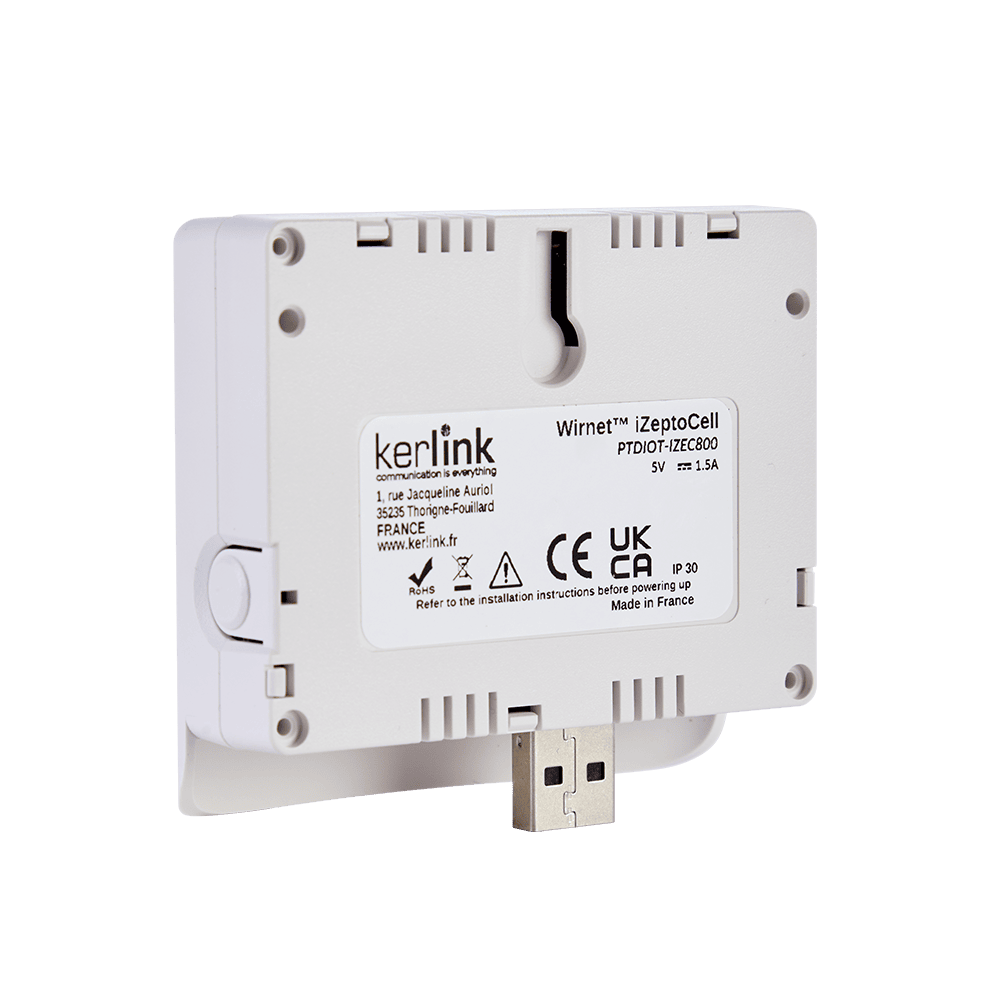

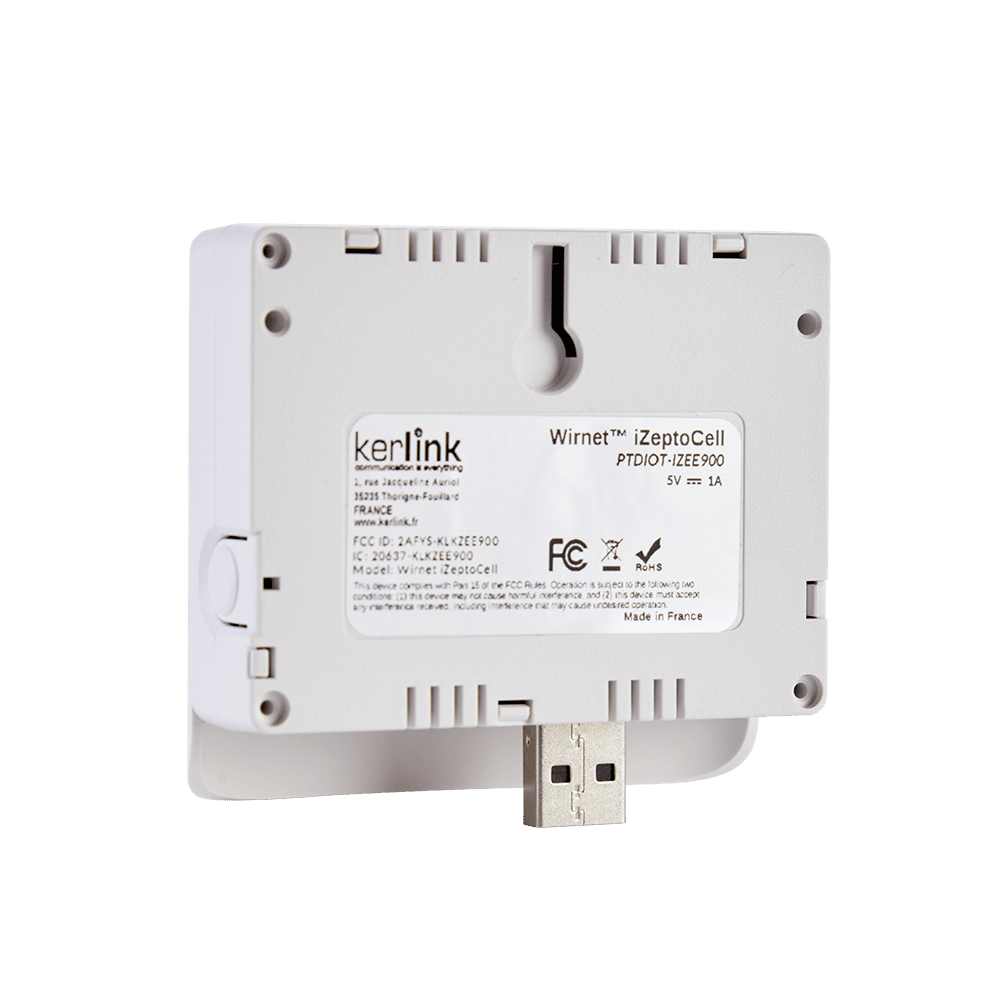

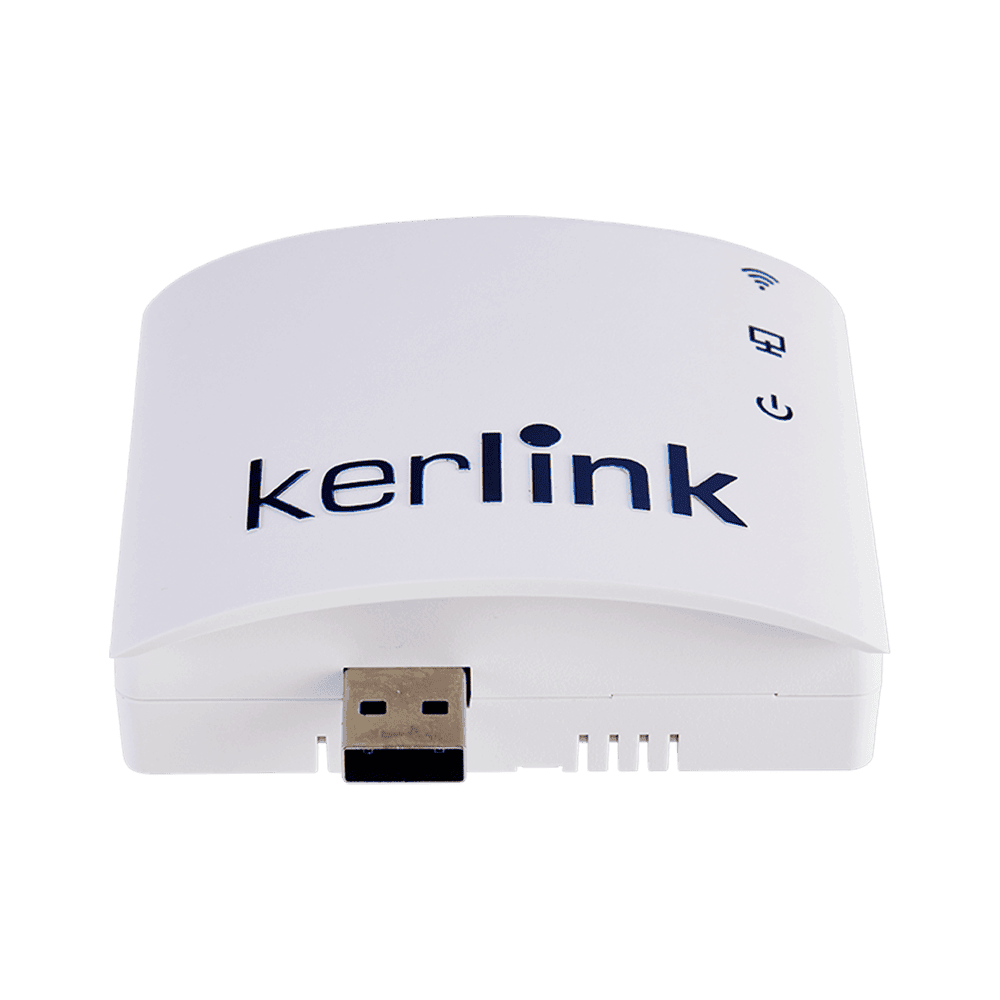

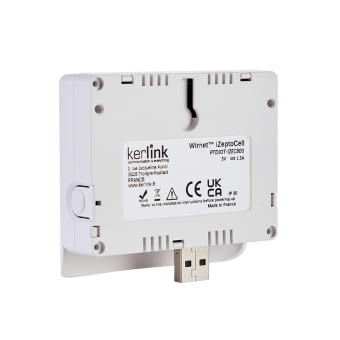

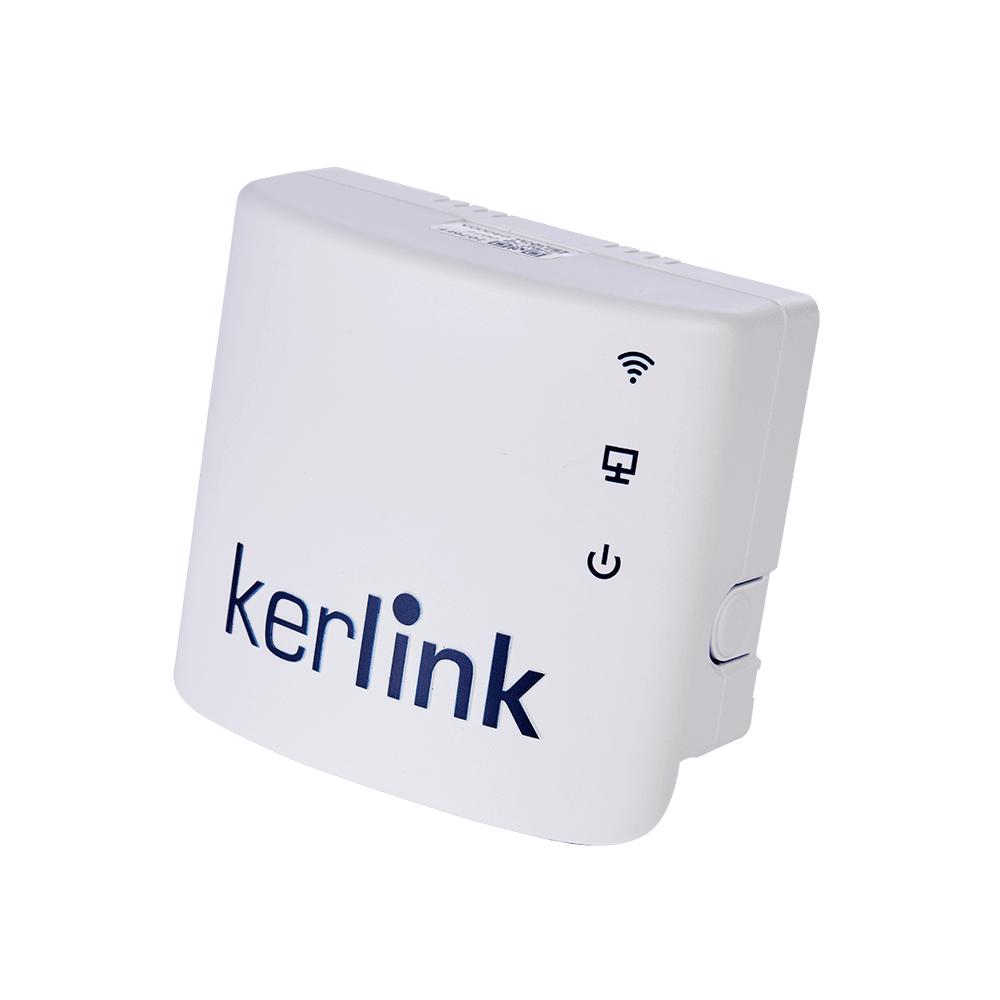

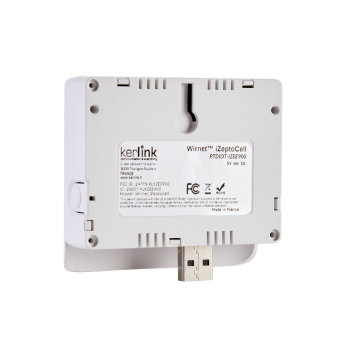

Wirnet iZeptoCell Series LoRaWAN Gateway

Kerlink’s Wirnet iZeptoCell indoor LoRaWAN gateway is designed to support low-power wide-area networks (LPWAN) reliably and seamlessly. LoRaWAN technology is ideally suited to handle the three key characteristics of massive IoT:

  • the huge number of individual endpoints,
  • the increasing challenges for network coverage for widely dispersed endpoints or deep inside building installations, and
  • the soaring amounts of data packages sent to the edge and to the cloud with low latency and small bandwidth.

Wirnet iZeptoCell IoT gateway allows network operators and owners to overcome the three main challenges common to deployment of customized and private indoor LoRaWAN networks designed for massive IoT:

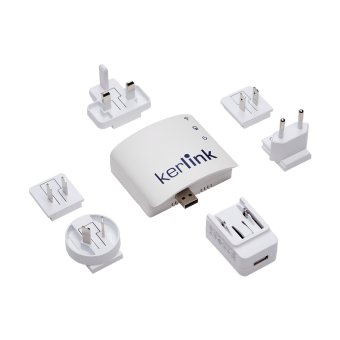

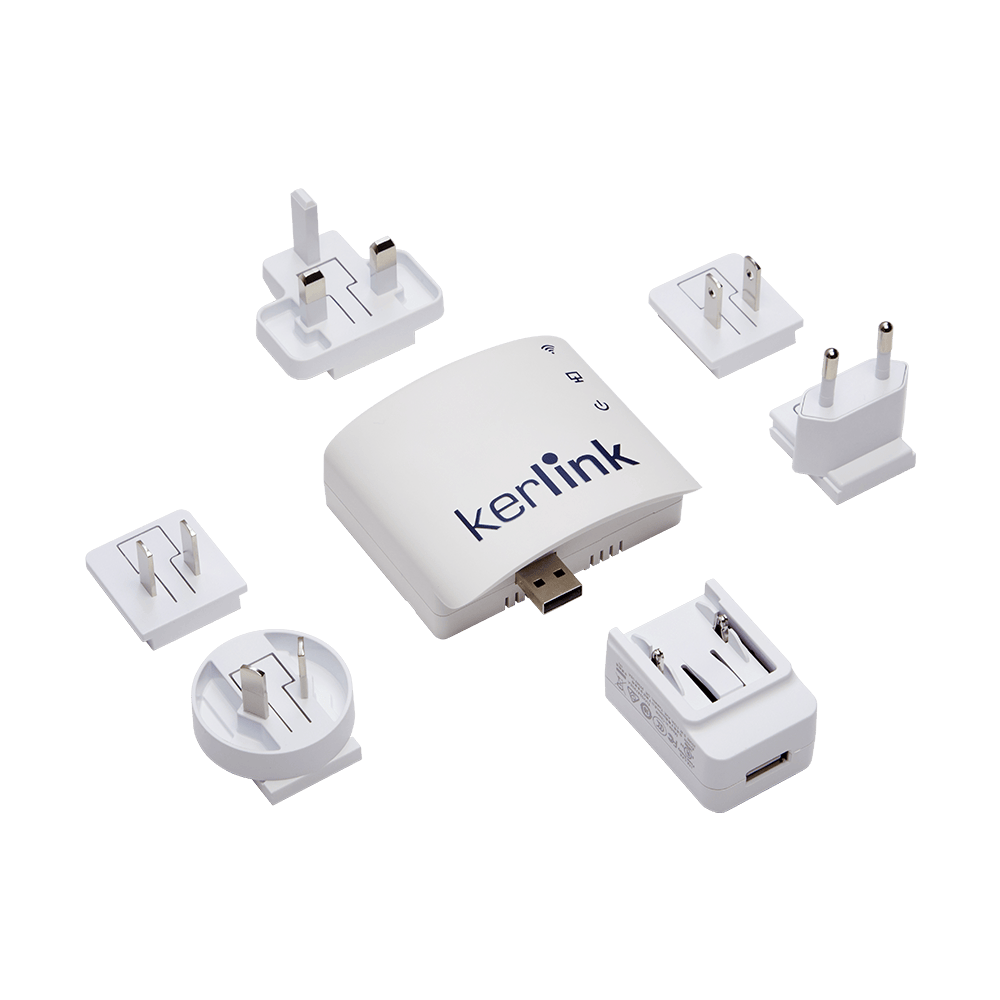

  • Simple and quick installation in varied environments because of its compatibility with different sources of power, such as multi-blade AC-DC power supply, USB and power-over-ethernet (PoE) splitters,
  • Strictly plug-and-play thanks to market leading key features like zero-touch provisioning, eliminating the need for users’ technical expertise
  • Flexible optimized backhaul options to accommodate customers’ different network configurations, as well as budgets.

Wirnet iZeptoCell is available in 2 versions:

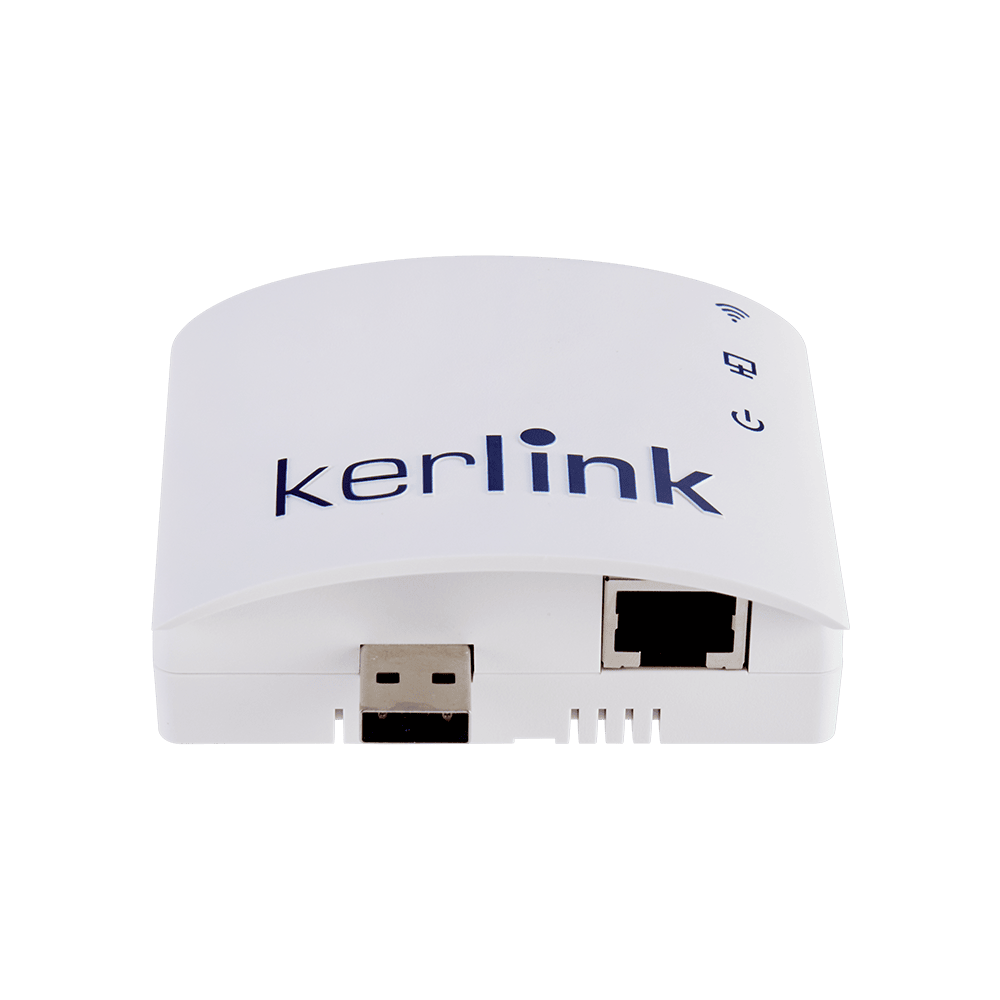

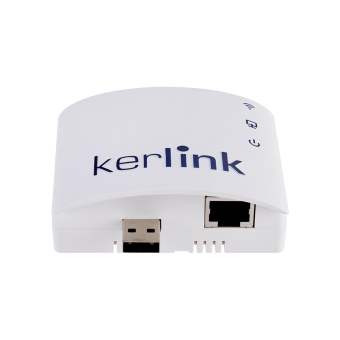

  • Wirnet iZeptoCell Ethernet to connect to Fixed Access Networks
  • Wirnet iZeptoCell Cellular to connect to Wireless Access Networks via LTE-M/GPRS



Download Documentation – Wirnet iZeptoCell Cellular



Download Documentation – Wirnet iZeptoCell Ethernet



Ask for quote

Ask for quote

Strengths

High performance, reliability & robustness

  • Semtech Sx1302 CoreCell Reference Design,
  • Integrated LoRa antenna,
  • Built-in high rejection filters,
  • Low power consumption

Secure hardware and software architectures

  • SecureBoot (Signed firmware),
  • SecureStorage (keys and certificates in secured area) using ProvenCore solution,
  • Secured links and backhaul protection (OpenVPN/IPsec),
  • Reboot (watchdog) and recovery on previous Management config (or factory config if the boot issue is not fixed).

Technical features

  • Supported unlicensed bands: 863-870MHz (EMEA, India), 902-928MHz (North America),
  • Supported LoRaWAN regional parameters: EU863-870, IN865-867, RU864-870, US902-928,
  • 8 x 8 packets detectors, 8ch RX (125 kHz, multi Spreading Factor) + 1ch RX (250KHz or 500kHz, mono Spreading Factor) + 1ch RX (FSK) + 1ch TX,
  • LoRa performance:
    • Rx Sensitivity: -140 dBm (SF12BW125),
    • Tx conducted power: configurable from 5dBm to 27dBm
    • Maximum EIRP: 28dBm
  • Backhaul:
  • Ethernet version: Ethernet IEEE 802.3 10BASE-T, 100BASE-TX,
  • Cellular version: LTE CatM1 / LTE CatNB2 (NB-IoT) / EGPRS / GPRS worldwide connectivity with remotely configurable eUICC,
    • +23dBm output power (class 3),
    • Bands 1, 2, 3, 5, 8, 12, 13, 18, 19 20, 25, 26, 27, 28, 66, 71, 85,
    • EU RED, US FCC, CA ISED, BRAZIL ANATEL, JAPAN JRF & JTBL, CHINA CCC, Singapore INDA, Australia RCM, Taiwan NCC, Korea approvals,
    • MFF2 eUICC remotely configurable,
  • CPU: ARM Cortex A7 792MHz,
  • DDRAM 256 MB,
  • 4GB eMMC (2GB available for user)
  • Power consumption: 1W nominal, 3.5W max
  • Operating Temperature Range: 0°C +55°C (for gateway only, without power supply),
  • Humidity: 5% to 95%,
  • Size: 76 x 68.5 x 32 mm,
  • Weight: 65g (gateway only); 250g (with packaging),
  • Casing: IP30

Use cases

  • Smart Energy
  • Smart Cities
  • Smart Industries
  • Smart Building & Facilities
