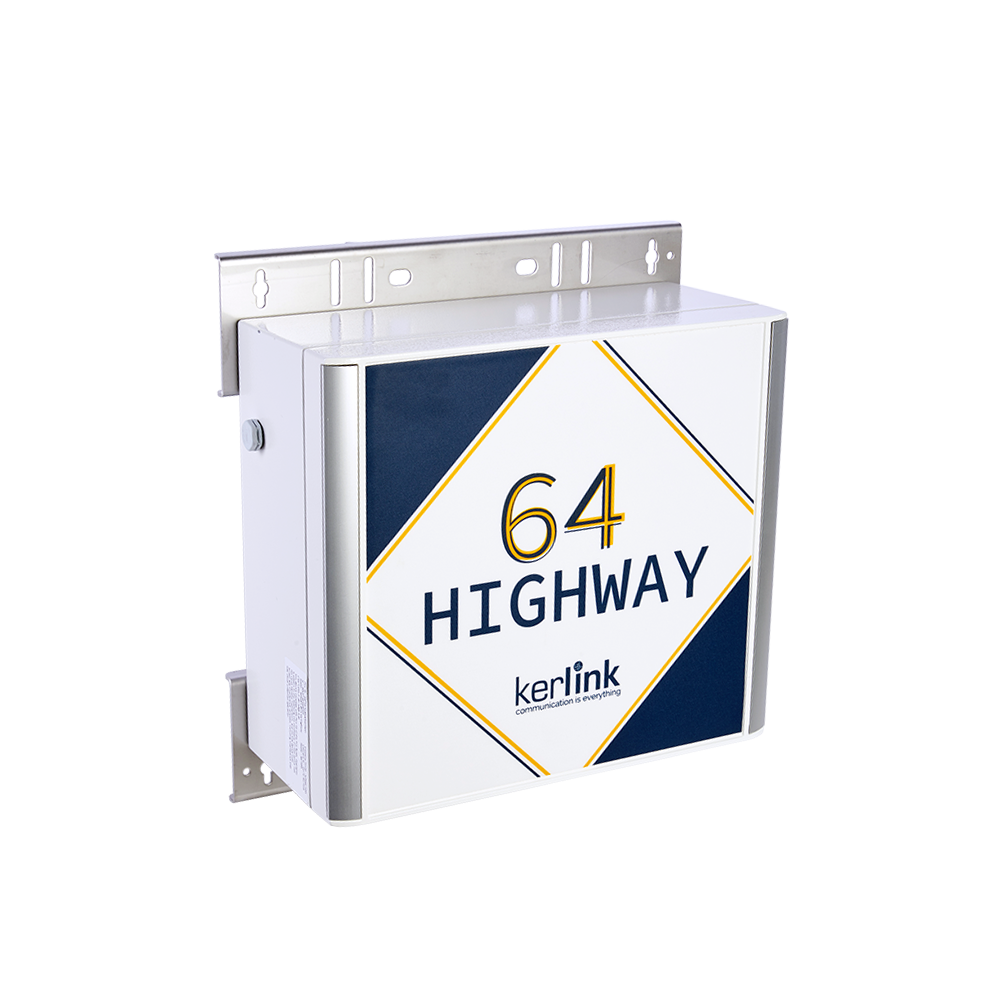

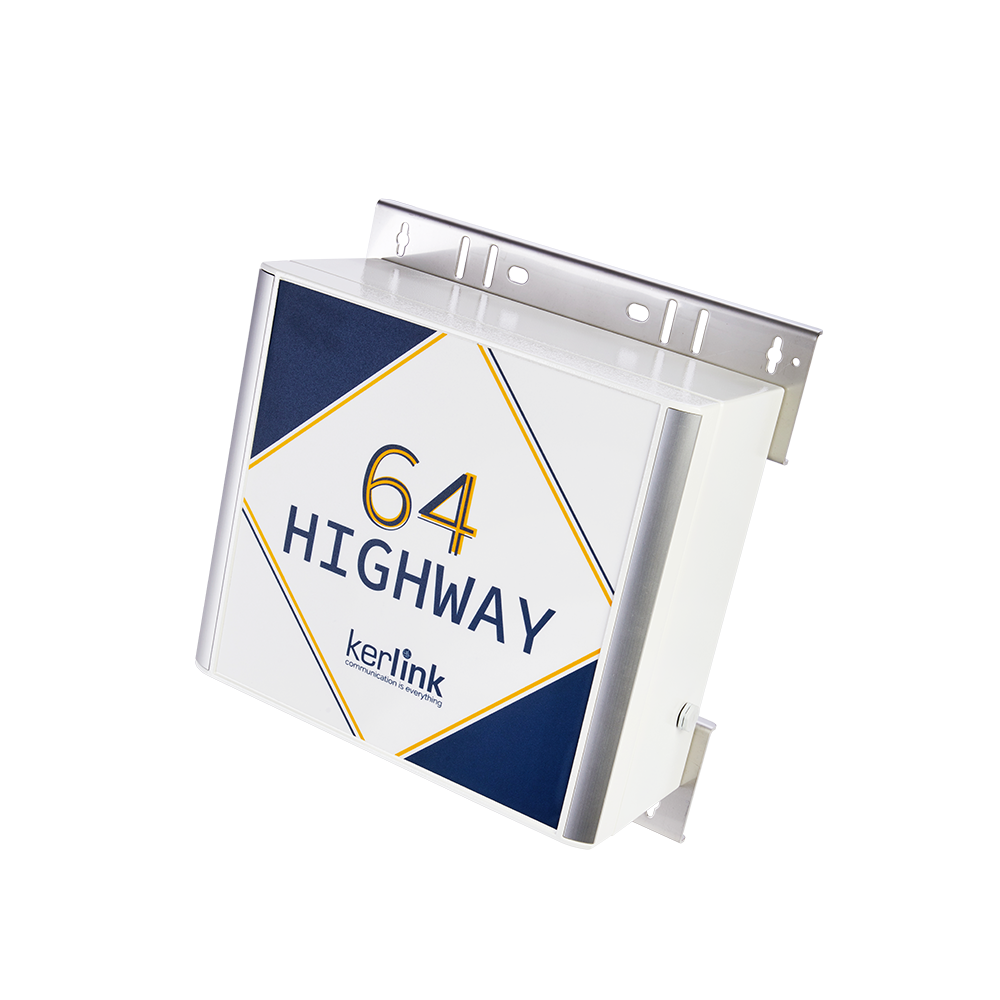

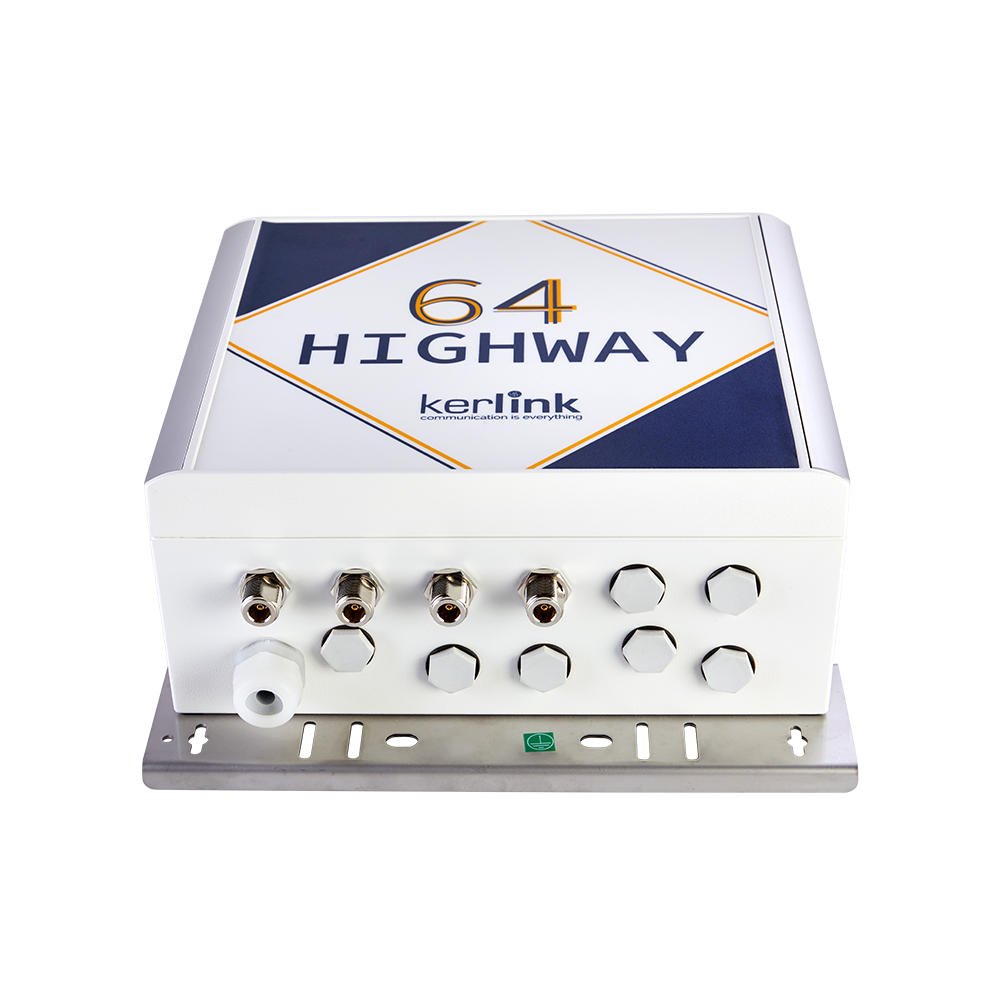

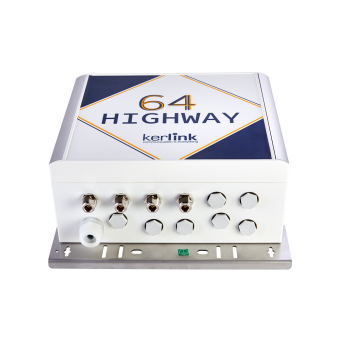

Wirnet iBTS 64 Highway
Kerlink Wirnet iBTS 64 Highway is a carrier-grade full-duplex outdoor LoRaWAN gateway, specially tailored for US market. This outdoor gateway is a concentrate of performance, reliability and robustness, for smart LPWA IoT networks. Its 64 channels allow to connect high volumes of IoT devices and manage millions of messages. This is the right choice for public and private highly scalable networks deployed by IoT operators, MVNOs, cable operators and tower cos mainly.
Based on the Wirnet iBTS widely recognized and proven architecture, this industrial-grade high-capacity gateway also meets ultra-secure HW and SW requirements. Compatible with Kerlink effective network performance monitoring and diagnostics tools, its operations can be easily and instantly managed remotely to ensure extreme stability, security and manageability.
Geolocation-ready, this robust and performant LoRaWAN gateway is fully compatible with IoT sensors network-based native LoRa geolocation, to support uses cases!
Download documentation
Ask for quote
WIRNET IBTS 64 HIGHWAY IN YOUR IOT NETWORK
-
Connected end-device -
LoRa Radio Network -
Wirnet iBTS 64 Highway LoRaWAN Gateway -
Core Network Operations Support System -
LoRa Network Server -
IoT Business Application
Strengths
CPU & Memory:
- Powerful ARM Cortex A9 core processor (up to 800MHz) with hardware watchdog and optimized power consumption management
- DDRAM 256 MB / 8 GB eMMC
Operating System:
- LoRa Packet Forwarder, Linux OS, embedded base station controller (Wanesy Management Center remote management)
- Software packages and development tools included
Networking:
- Firewalling, routing, networking and tunneling features
Security:
- Secure boot, trust zone, firewall, software auto-recovery and secure firmware remote upgrade.
GPS:
- Integrated high sensitivity GNSS module
- GPS L1C/A, GLONASS L1OF, BeiDou B1, QZSS L1C/A, SBAS L1C/A and Galileo E1B/C-ready
Mechanical:
Casing:

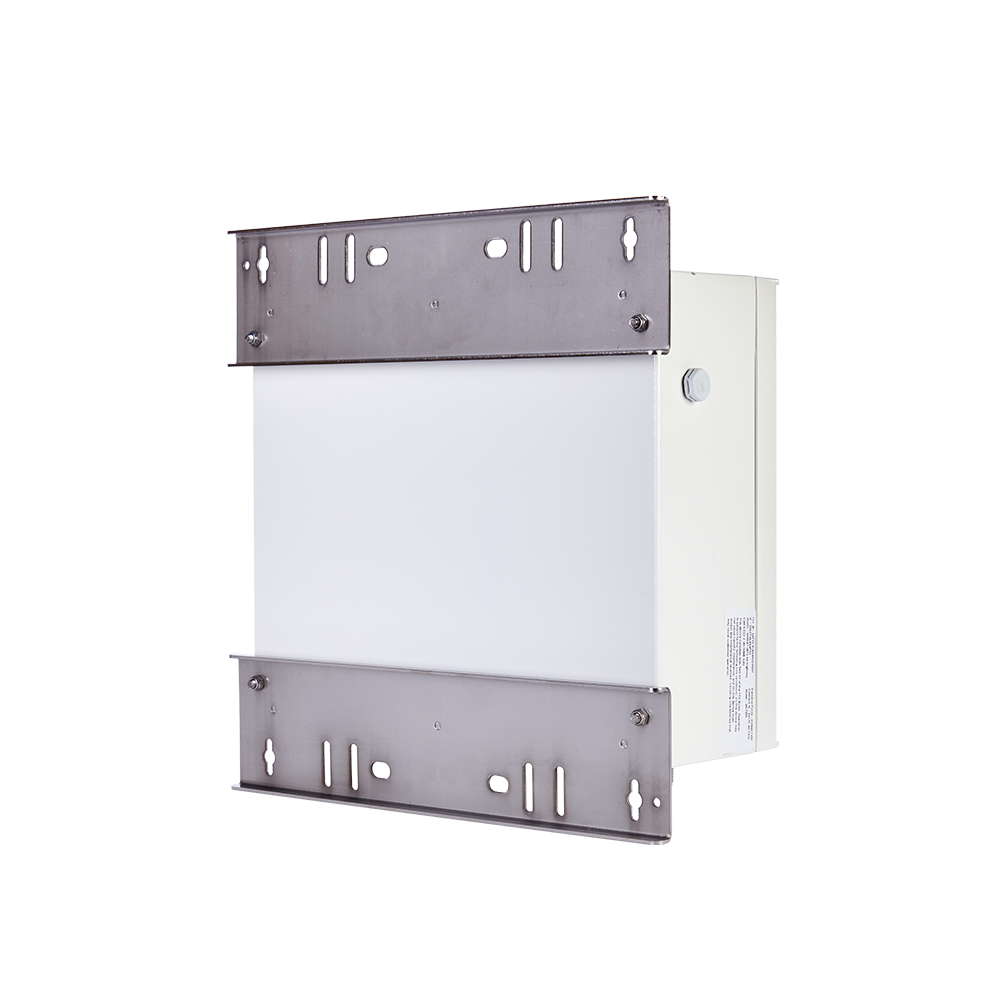

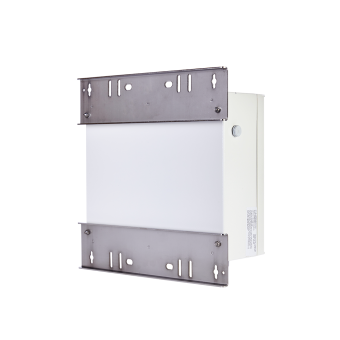

- Robust and waterproof aluminium casing : 9Kg (including mounting kit)
Power:
- PowerOverEthernet supply: 48V class 4, 60W
- DC power supply (ex: solar panel use): 11V to 56V DC
- Power control: ignition detection, software OFF switching, ON/OFF button
- Back-up battery
Communication:
- LoRa® RF module (64 + 8 channels)
- 64ch RX (125 kHz, multi Spreading Factor) + 8 ch RX (500kHz, mono Spreading Factor) to get 72ch. RX + 4ch TX (without antenna diversity)
- (32ch + 32ch) RX (125 kHz, multi Spreading Factor), + (4ch + 4ch) TX (with antenna diversity)
- Bidirectional communications, range of 15+ km in sub-urban areas, and of 2 km in urban areas.
- Supported ISM bands: ISM 915 band : 902-915 MHz (Rx), 923-928 MHz (Tx)
- Backhaul connectivity over GPRS/EDGE/HSPA/LTE or Ethernet
Environment and sensors:
- Large operating range, high humidity tolerance
- Certified for Ingress protection / Impact resistance / UV resistance / Flammability rating
- Embedded sensors for remote secure monitoring and management using Wanesy Management Center .
Geolocation:
- Ready for LoRa geolocation combining RSSI and Time Difference on Arrival (TDoA).
- Available for outdoor and indoor environments
- Compatible with Wanesy Geolocation
Remote management:
- Remote alarm notification, firmware upgrade, file transfer, configuration, radio monitoring and statistics (Wanesy Management Center)
Certification:
- FCC / UL / RSS/ CAN-CSA certified.
Compatible accessories:
- LoRa Antennas
- Antennas mounting kit
- Surge protections
Technical features
- Carrier grade, robust outdoor LoRaWAN Gateway based on components used in the widely deployed iBTS family
- Full-Duplex
- Duplexer
- Low Power consumption and Wide Area coverage (15+km in semi-urban area and 2km in urban area)
- High capacity and reliability, for bidirectional communications handling high volumes of end-points and messages.
- Light infrastructure, easy to install, fast to configure and flexible to upgrade.
- High interferences-resistance for better data transmission and permanent high availability.
- Fully compatible with network-based LoRa native geolocation solutions
