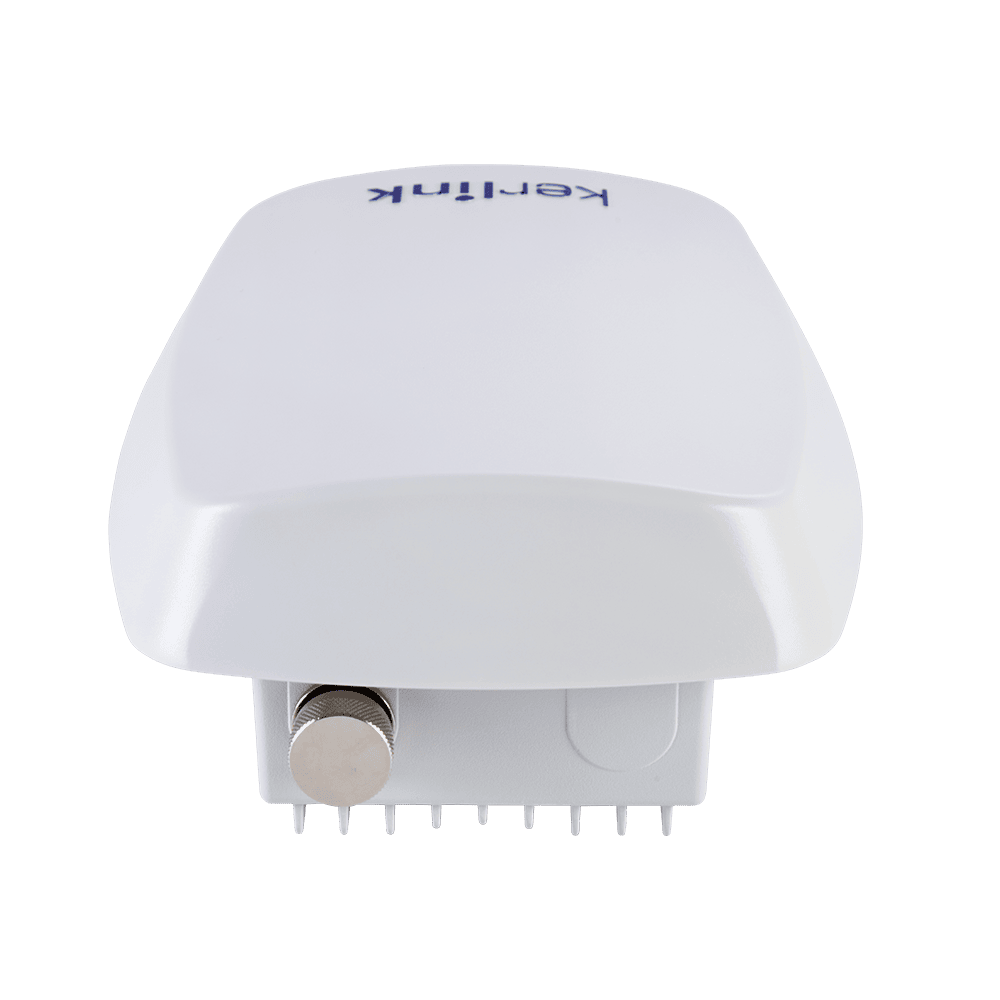

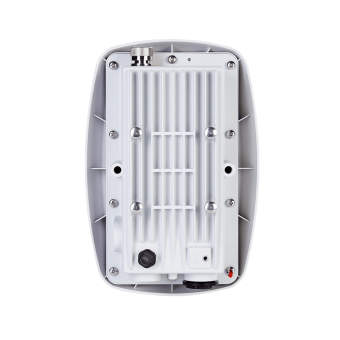

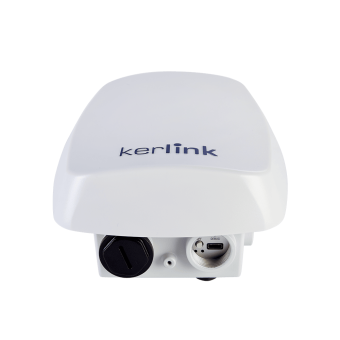

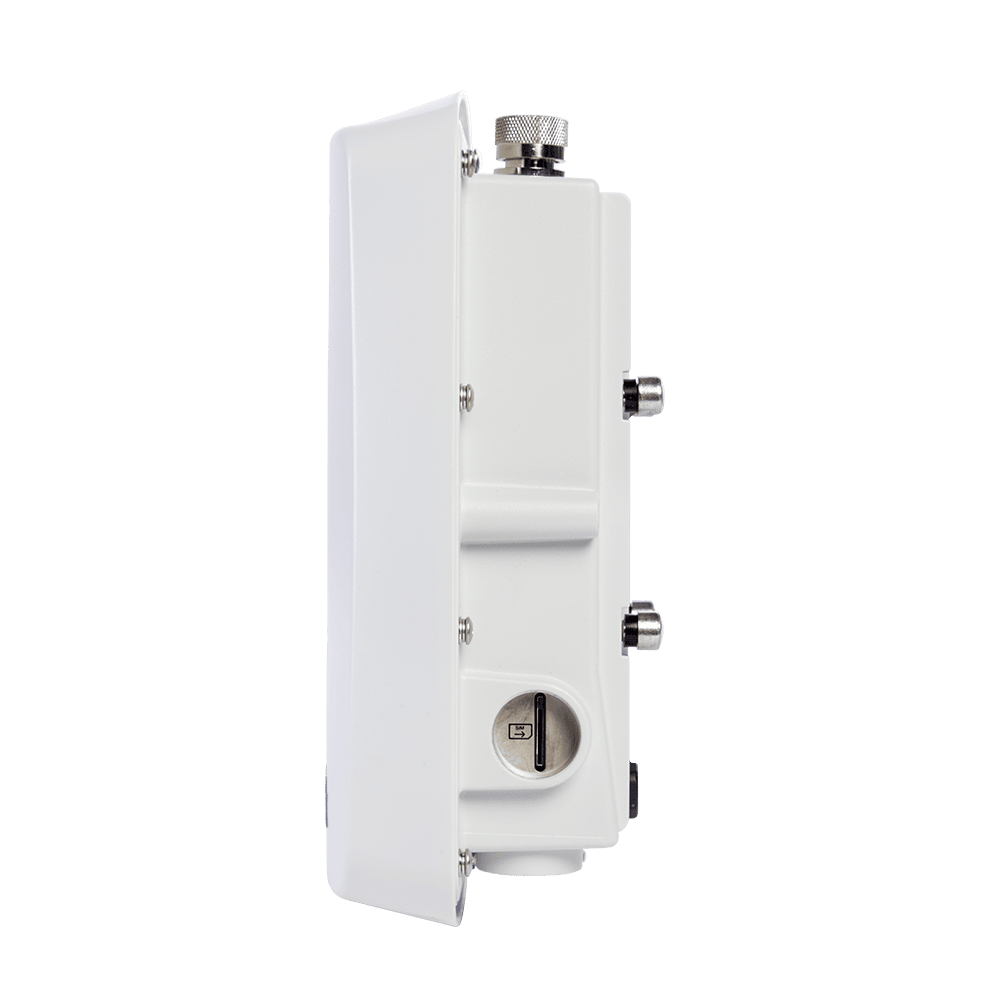

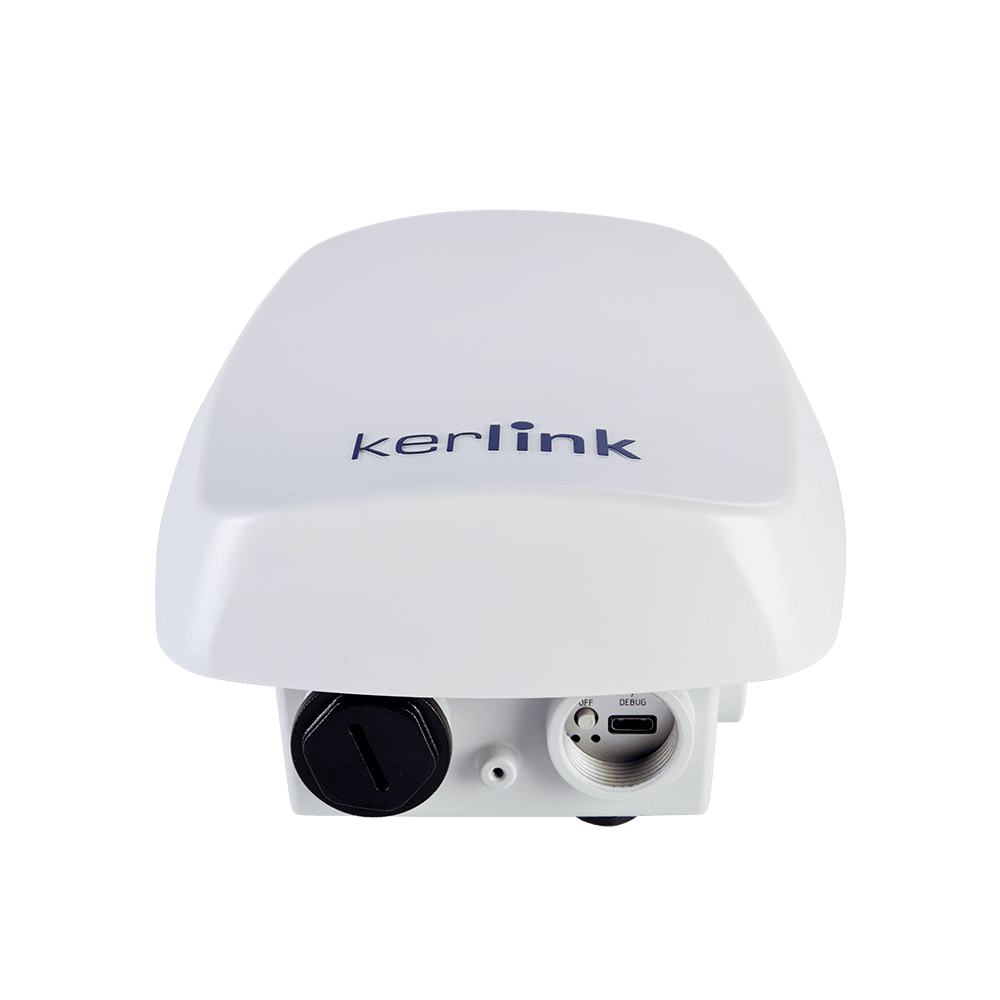

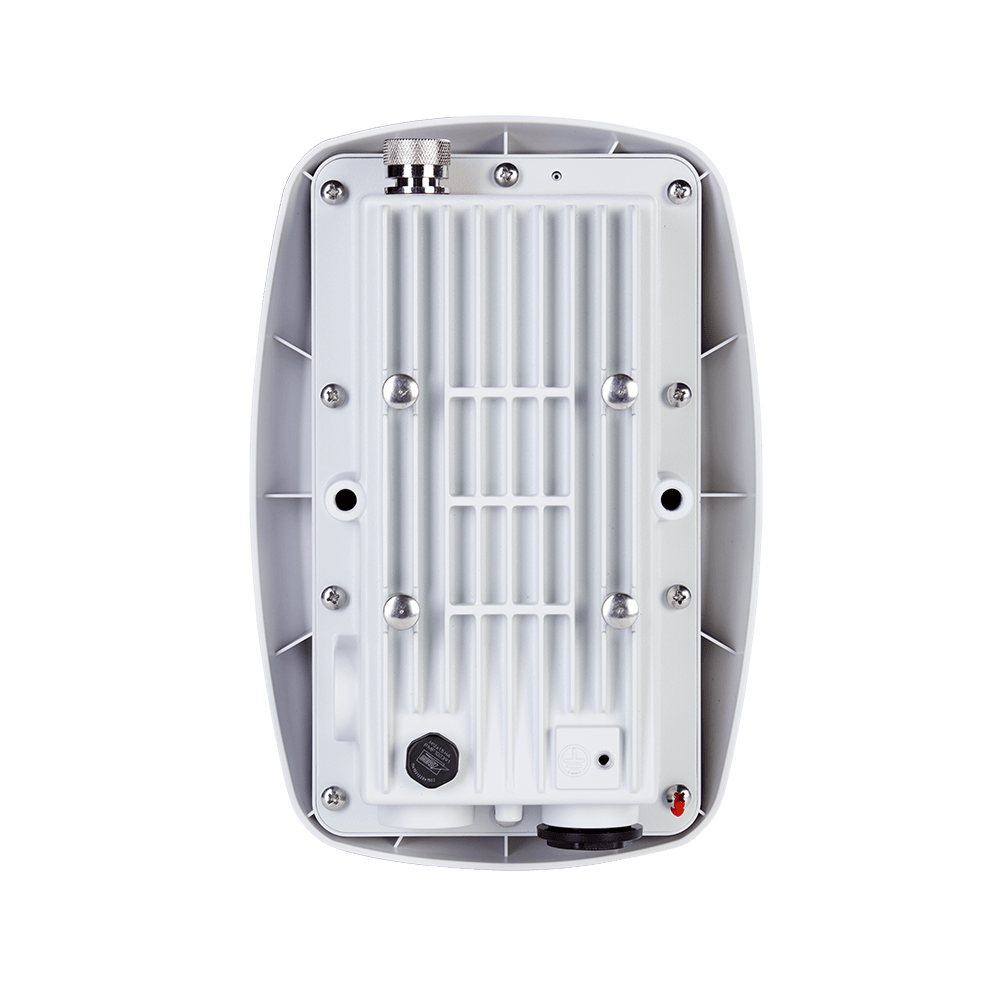

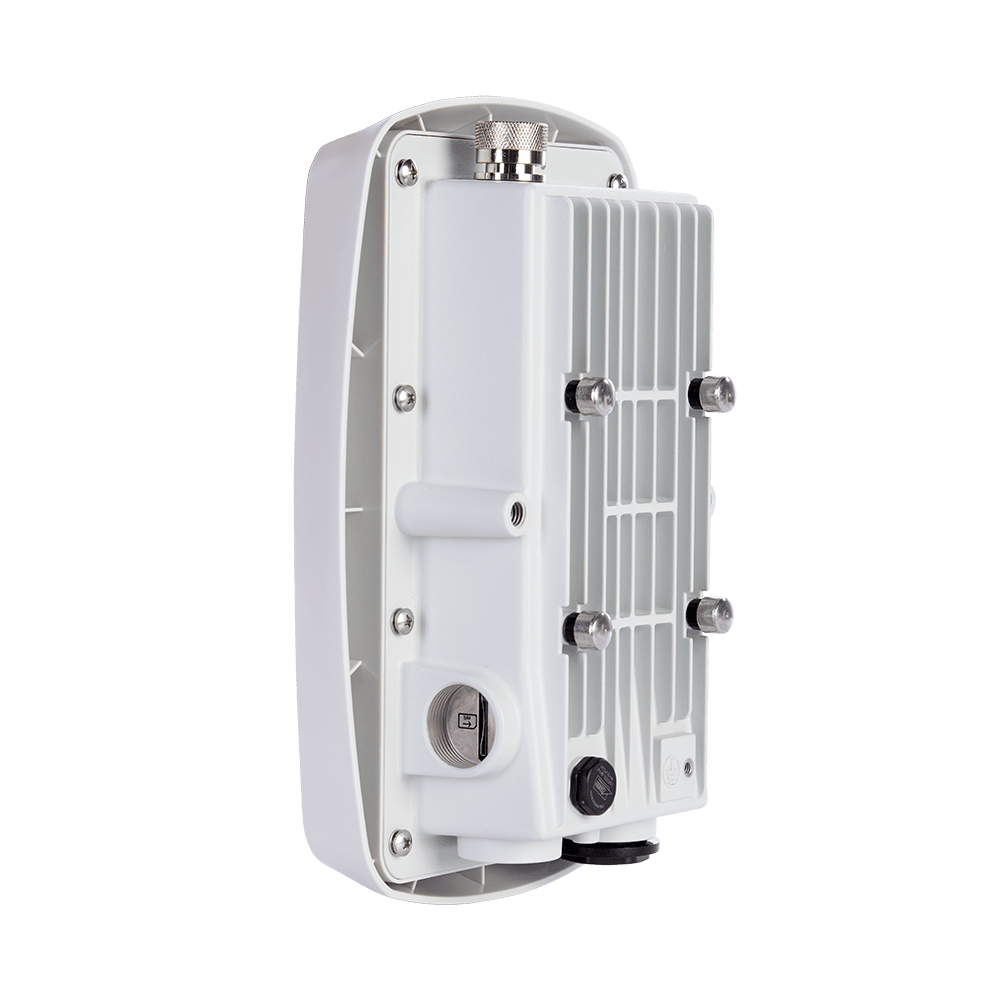

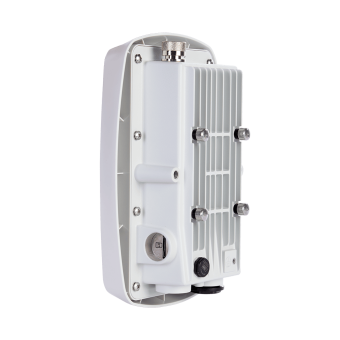

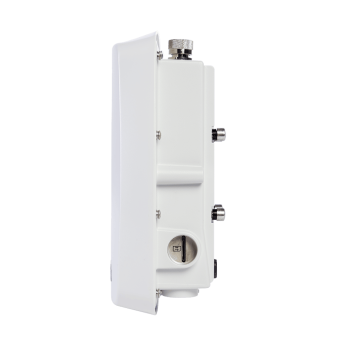

Wirnet iStation

The iStation is the ideal gateway to support your smart city, smart industry or any other smart project combining simplicity of installation and superior technical characteristics.



Ask for a demo?

Documentation
Ask for quote

Ask for quote

Documentation

Strengths



High performance, reliability & robustness
• Carrier grade design with excellent heat dissipation
• Semtech Reference Design v1.5 components.



Security HM and SW architectures
• SecureBoot (Signed firmware),
• SecureStorage (keys and certificates in secured area) using ProvenCore™ solution,
• Secured links and backhaul protection (OpenVPN/IPsec),
• Reboot (watchdog) and recovery on previous Management config (or factory config if the boot issue is not fixed).

Technical features



• Sniffer for LBT (Listen Before Talk),
• Built-in with high rejection SAW filters,
• Rx Sensitivity: -141 dBm (SF12),
• TX Power: configurable from 5dBm to 27dBm,
• Range -40°C +60°C,
• Humidity: 95%,
• Size : 265 x 165 x 100 mm,
• Weight : 1,4kg (mounting kit included),
• Spectrum analysis compliant,
• Backup batteries to allow the clean shut down of applications in case of power cut,
• Casing: IP67 Alu (Back), Polycarbonate (Front), Inox (mounting kit),
• Surge protection of the RF LoRa link (option),
• CPU: ARM Cortex A9,
• DDRAM 256MB,
• 8GB eMMC (6GB available for user),



     Software features



• Same Software than Wirnet™ iBTS and iFemtoCell: same User eXperience, quicker integration,
• Dynamic web interface (On-the fly modifications),
• Programmable Gateway: Toolchain, libraries and header files for compilation of homemade applications, or extra packages additions,
• Including:
– Operating System: KerOS with embedded GNU/Linux based on Yocto 2.4 and LTS kernel 4.14,
– Native Language Support: Python2, C/C++ and Shell,
– Included packages: SQlite (Database), Connman/Ofono, NTPd, lighttpd.

Use cases

  • Smart Energy
  • Smart Cities
  • Smart Agricultures & Environment
  • Smart Industries
